:: MWZ :: Dimension

Model No. Height (mm) Thickness (mm) Weight (grams) CAD MWZ 40-03 3.0 2.0 9.0 By request MWZ 40-04 4.0 2.0 9.5 By request MWZ 40-05 5.0 2.0 10.2 By request MWZ 40-06 6.0 2.0 10.7 By request MWZ 40-07 7.0 2.0 11.3 By request MWZ 40-10 10.0 3.0 16.7 By request MWZ 40-15 15.0 3.0 19.6 By request MWZ 40-20 20.0 3.0 22.4 By request MWZ 40-25 25.0 3.0 25.3 By request MWZ 40-30 30.0 3.0 28.2 By request MWZ 40-35 35.0 3.0 31.0 By request

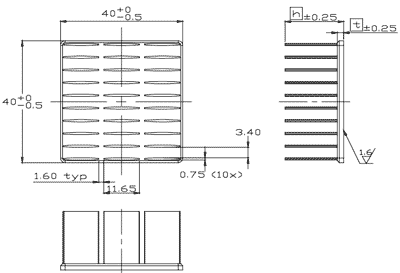

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number MWZ 40-03 indicate 40x40mm is package footprint and 3 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MWZ 40-03 9.02 7.08 5.92 MWZ 40-04 7.80 5.95 4.96 MWZ 40-05 6.74 5.05 4.19 MWZ 40-06 5.94 4.39 3.62 MWZ 40-07 5.34 3.86 3.19 MWZ 40-10 4.23 3.09 2.59 MWZ 40-15 3.29 2.40 2.01 MWZ 40-20 2.61 1.87 1.58 MWZ 40-25 2.18 1.60 1.35 MWZ 40-30 1.87 1.39 1.15 MWZ 40-35 1.67 1.23 1.03
