Model No.	Height (mm)	Thickness (mm)	Weight (grams)	CAD
MWW 45-10	10.0	3.0	21.0	By request
MWW 45-15	15.0	3.0	24.6	By request
MWW 45-20	20.0	3.0	28.3	By request
MWW 45-25	25.0	3.0	31.9	By request
MWW 45-30	30.0	3.0	35.6	By request
MWW 45-35	35.0	3.0	39.2	By request

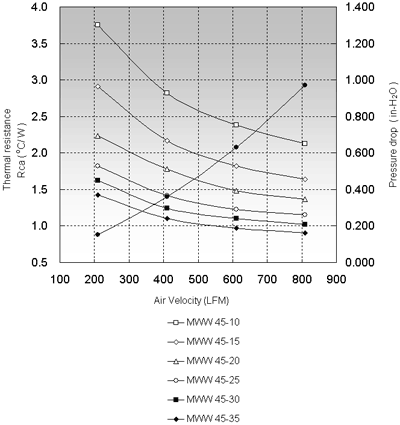

::Rth (oC/W)::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MWW 45-10 3.75 2.82 2.38 MWW 45-15 2.91 2.17 1.82 MWW 45-20 2.23 1.78 1.48 MWW 45-25 1.82 1.42 1.23 MWW 45-30 1.62 1.25 1.10 MWW 45-35 1.43 1.10 0.97
