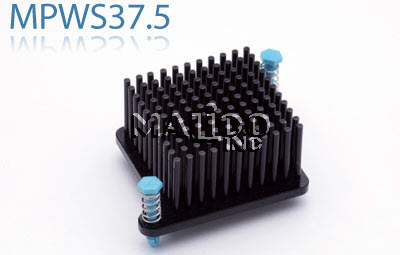

MPWS37.5 – Malico Inc.

Home » Heat Sink With Push Pin » MPWS37.5 – Malico Inc.



Model No.	Height (mm)	Thickness (mm)	Weight (grams)	CAD
MPWS 37.5-12	11.6	2.6	16.77	By request
MPWS 37.5-15	14.6	2.6	18.99	By request
MPWS 37.5-18	17.6	2.6	21.22	By request
MPWS 37.5-21	20.6	2.6	23.44	By request
MPWS 37.5-23	22.6	2.6	24.92	By request
MPWS 37.5-28	27.6	2.6	28.63	By request
MPWS 37.5-33	32.6	2.6	32.34	By request

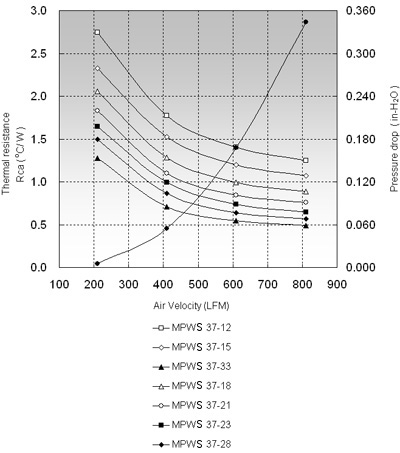

::Rth (oC/W)::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MPWS 37.5-12 2.74 1.77 1.40 MPWS 37.5-15 2.32 1.52 1.19 MPWS 37.5-18 2.05 1.28 0.99 MPWS 37.5-21 1.83 1.09 0.84 MPWS 37.5-23 1.64 0.99 0.73 MPWS 37.5-28 1.49 0.86 0.63 MPWS 37.5-33 1.27 0.70 0.54
