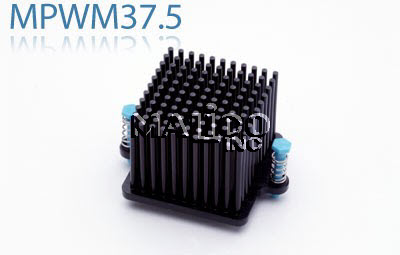

MPWM37.5 – Malico Inc.

Home » Heat Sink With Push Pin » MPWM37.5 – Malico Inc.

Model No. Height (mm) Thickness (mm) Weight (grams) CAD
MPWM 37.5-12 11.6 2.6 16.77 By request
MPWM 37.5-15 14.6 2.6 18.99 By request
MPWM 37.5-18 17.6 2.6 21.22 By request
MPWM 37.5-21 20.6 2.6 23.44 By request
MPWM 37.5-23 22.6 2.6 24.92 By request
MPWM 37.5-28 27.6 2.6 28.63 By request
MPWM 37.5-33 32.6 2.6 32.34 By request

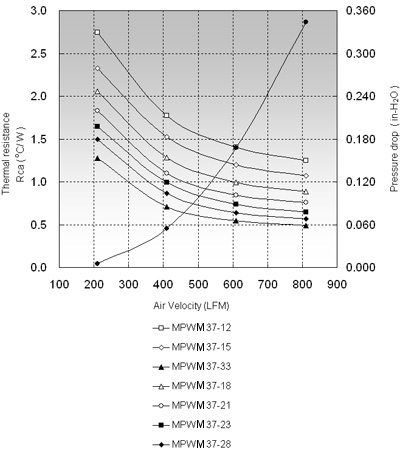

::Rth (oC/W)::
imagempwm
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
MPWM  37.5-12 2.74 1.77 1.40
MPWM  37.5-15 2.32 1.52 1.19
MPWM  37.5-18 2.05 1.28 0.99
MPWM  37.5-21 1.83 1.09 0.84
MPWM 37.5-23 1.64 0.99 0.73
MPWM  37.5-28 1.49 0.86 0.63
MPWM  37.5-33 1.27 0.70 0.54
