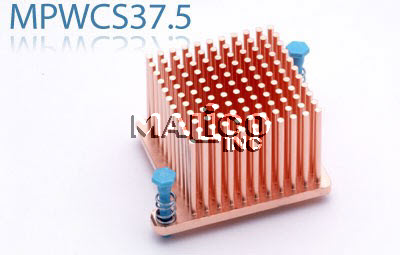

MPWCS37.5 – Malico Inc.

Home » Heat Sink With Push Pin » MPWCS37.5 – Malico Inc.

Model No.	Height (mm)	Thickness (mm)	Weight (grams)	CAD
MPWCS 37.5-12	11.6	2.6	55.07	By request
MPWCS 37.5-15	14.6	2.6	62.63	By request
MPWCS 37.5-18	17.6	2.6	69.69	By request
MPWCS 37.5-21	20.6	2.6	76.98	By request
MPWCS 37.5-23	22.6	2.6	81.84	By request
MPWCS 37.5-28	27.6	2.6	94.02	By request
MPWCS 37.5-33	32.6	2.6	106.02	By request

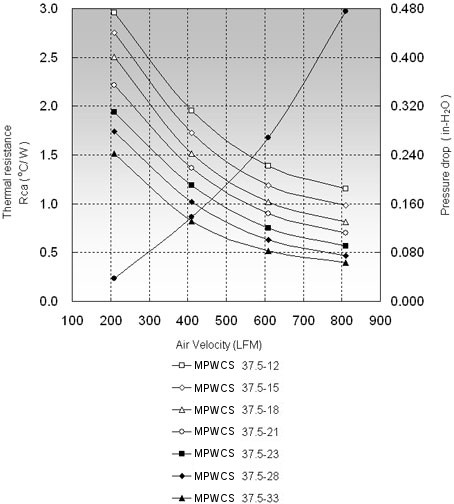

::Rth (oC/W)::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MPWCS 37.5-12 2.62 1.67 1.31 MPWCS 37.5-15 2.22 1.44 1.11 MPWCS 37.5-18 1.96 1.21 0.92 MPWCS 37.5-21 1.76 1.05 0.80 MPWCS 37.5-23 1.58 0.94 0.69 MPWCS 37.5-28 1.45 0.84 0.61 MPWCS 37.5-33 1.25 0.68 0.53
