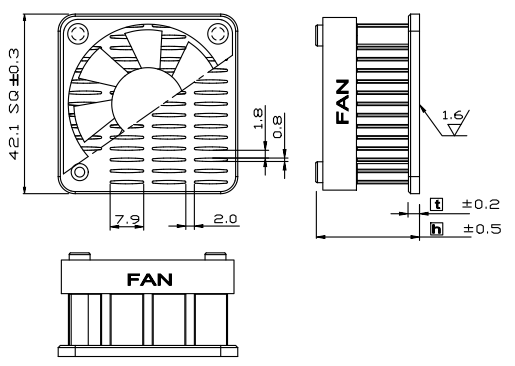

MWF42.5 – Malico Inc. :: MWF42.5 :: Dimension Model No. Height (mm) Thickness (mm) Weight (grams) Rth ( oC/W ) CAD Attachment MWF42.5-19 18.5 2.6 43.1 1.65 By request Clip , Tape MWF42.5-22 21.5 2.6 44.8 1.46 By request Clip , Tape MWF42.5-25 24.5 2.6 46.5 1.33 By request Clip , Tape MWF42.5-28 27.5 2.6 48.2 1.28 By request Clip , Tape MWF42.5-30 29.5 2.6 49.3 1.26 By request Clip , Tape MWF42.5-35 34.5 2.6 52.1 1.23 By request Clip , Tape MWF42.5-40 39.5 2.6 54.9 1.19 By request Clip , Tape Dimensions: mm Material : AL6063 Finish :black anodize :: Fan :: Dimension Bearing Voltage (VDC) Speed (RPM) Air Flow (CFM) Noise (dBA) 40 x 40 x 6.9mm VAPO 5V 7000 5.9 32 Remarks: 1) Standard wire length 300mm. 2) Connector Molex 2695-3P or equivalent
