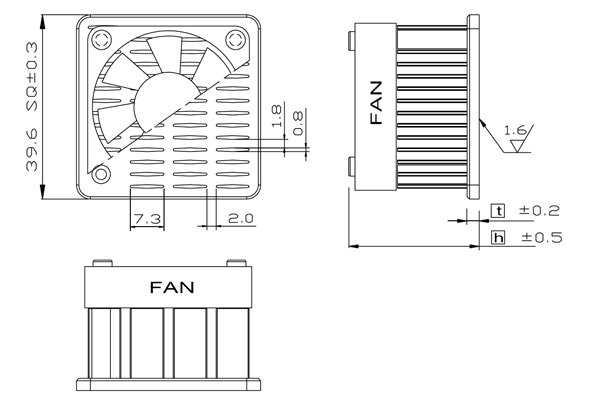

:: MWF40 :: Dimension

Model No.	Height (mm)	Thickness (mm)	Weight (grams)	Rth ( ^oC/W )	CAD	Attachment
MWF40-21	20.5	2.6	33.1	1.75	By request	Clip , Tape
MWF40-24	23.5	2.6	34.8	1.54	By request	Clip , Tape
MWF40-27	26.5	2.6	36.5	1.42	By request	Clip , Tape
MWF40-30	29.5	2.6	38.2	1.34	By request	Clip , Tape
MWF40-32	31.5	2.6	39.3	1.32	By request	Clip , Tape
MWF40-37	36.5	2.6	42.1	1.27	By request	Clip , Tape
MWF40-42	41.5	2.6	44.9	1.24	By request	Clip , Tape

Dimensions: mm Material : AL6063 Finish :black anodize

:: Fan ::

Dimension	Bearing	Voltage (VDC)	Speed (RPM)	Air Flow (CFM)	Noise (dBA)
35 x 35 x 6.9mm	VAPO	5V	7600	5.5	26

Remarks:
1) Standard wire length 300mm.
2) Connector Molex 2695-3P or equivalent
