MPF40 – Malico Inc.

Home » Heat Sink with Fan » MPF Series » MPF40 – Malico Inc.

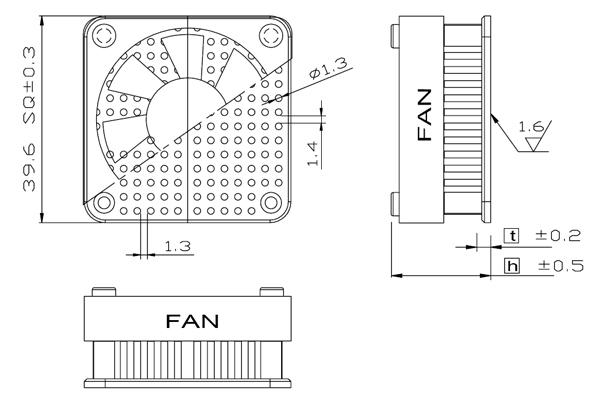

:: MPF40 :: Dimension

Model No.	Height (mm)	Thickness (mm)	Weight (grams)	Rth ( ^oC/W )	CAD	Attachment
MPF40-18	17.8	1.7	25.0	1.95	By request	Clip , Tape

Dimensions: mm Material : AL6063 Finish :black anodize

:: Fan ::

Dimension	Bearing	Voltage (VDC)	Speed (RPM)	Air Flow (CFM)	Noise (dBA)
40 x 40 x 6.9mm	VAPO	5V	7000	5.9	32

Remarks:
1) Standard wire length 300mm.
2) Connector Molex 2695-3P or equivalent
