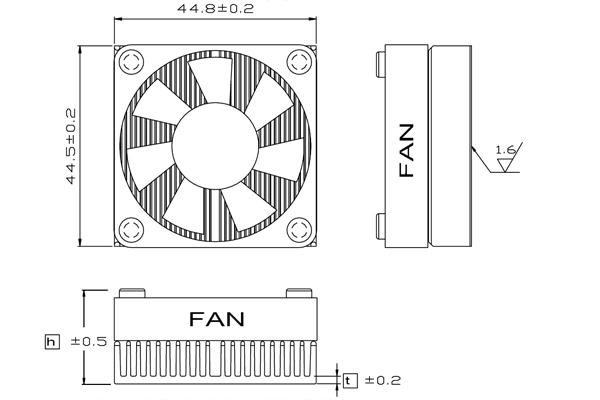

:: HF45 :: Dimension
Model No. Height (mm) Thickness (mm) Weight (grams) Rth ( oC/W ) CAD Attachment
HF45-18 18 1.7 28.9 1.64 By request Clip , Tape
HF45-21 21 1.7 35.4 1.41 By request Clip , Tape
HF45-25 25 1.7 41.9 1.29 By request Clip , Tape

Dimensions: mm Material : AL6063 Finish :black anodize

:: Fan ::
Dimension Bearing Voltage (VDC) Speed (RPM) Air Flow (CFM) Noise (dBA)
40 x 40 x 6.9mm VAPO 5V 7000 5.9 32
Remarks:
1) Standard wire length 300mm.
2) Connector Molex 2695-3P or equivalent
