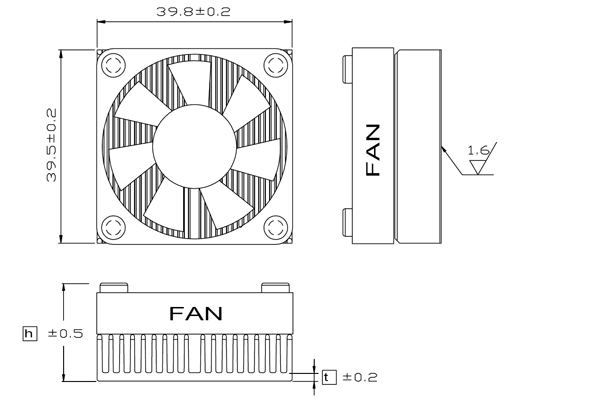

:: HF40 :: Dimension
Model No. Height (mm) Thickness (mm) Weight (grams) Rth ( oC/W ) CAD Attachment
HF40-13 13 1.7 24.5 1.85 By request Clip , Tape
HF40-17 17 1.7 29.5 1.69 By request Clip , Tape
HF40-20 20 1.7 34.7 1.47 By request Clip , Tape

Dimensions: mm Material : AL6063 Finish :black anodize

Dimension Bearing Voltage (VDC) Speed (RPM) Air Flow (CFM) Noise (dBA)
40 x 40 x 6.9mm VAPO 5V 7000 5.9 32
Remarks:
1) Standard wire length 300mm.
2) Connector Molex 2695-3P or equivalent
