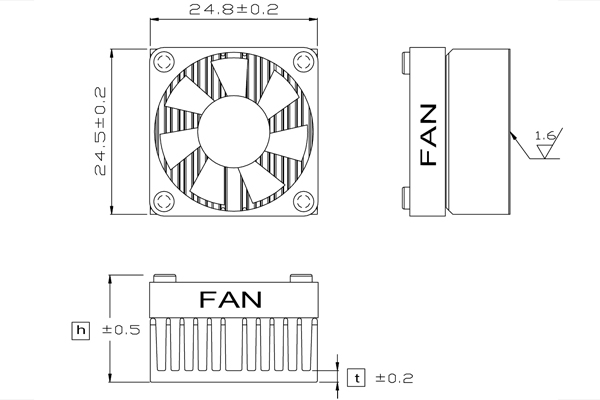

:: HF25 :: Dimension

Model No.	Height (mm)	Thickness (mm)	Weight (grams)	Rth ( ^oC/W )	CAD	Attachment
HF25-15	15	1.7	11.8	2.83	By request	Clip , Tape
HF25-18	18	1.7	13.4	2.61	By request	Clip , Tape
HF25-21	21	1.7	15.0	2.42	By request	Clip , Tape

Dimensions: mm Material : AL6063 Finish :black anodize

:: Fan ::

Dimension	Bearing	Voltage (VDC)	Speed (RPM)	Air Flow (CFM)	Noise(dBA)
25 x 25 x 6.9mm	VAPO	5V	10000	3.0	27

Remarks:
1) Standard wire length 300mm.
2) Connector Molex 2695-3P or equivalent
