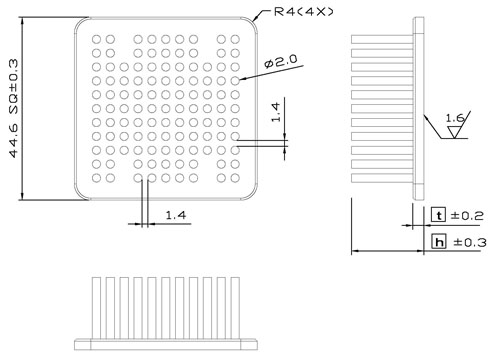

:: MPA45 :: Dimension

Model No.	Height (mm)	Thickness (mm)	Weight (grams)	CAD
MPA 45-12	11.6	2.6	21.3	By request
MPA 45-15	14.6	2.6	23.6	By request
MPA 45-18	17.6	2.6	26.0	By request
MPA 45-21	20.6	2.6	28.4	By request
MPA 45-23	22.6	2.6	10.0	By request
MPA 45-28	27.6	2.6	33.9	By request
MPA 45-33	32.6	2.6	37.9	By request

MPA45

Material	:	Aluminum 6063
Finish	:	Black anodize
Remarks	:	Model number MPA45-12 indicate 45x45mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

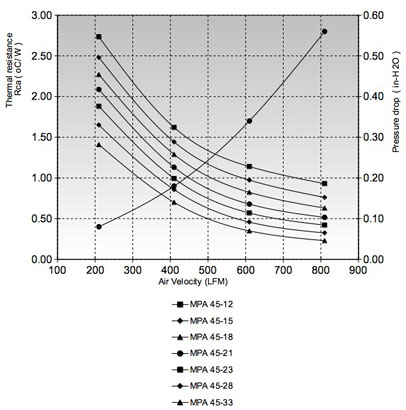

:: Rth ( ^oC/W ) ::

	Air Velocity / Rth ( ^oC/W )
	200(LFM)	400(LFM)	600(LFM)
MPA 45-12	2.73	1.62	1.14
MPA 45-15	2.48	1.44	0.97
MPA 45-18	2.27	1.29	0.82
MPA 45-21	2.09	1.13	0.68
MPA 45-23	1.88	0.99	0.57
MPA 45-28	1.65	0.86	0.46
MPA 45-33	1.41	0.70	0.35
