:: MPA35 :: Dimension

Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment MPA 35-12 11.6 2.6 16.4 By request Clip , Tape MPA 35-15 14.6 2.6 18.1 By request Clip , Tape MPA 35-18 17.6 2.6 19.8 By request Clip , Tape MPA 35-21 20.6 2.6 21.5 By request Clip , Tape MPA 35-23 22.6 2.6 22.7 By request Clip , Tape MPA 35-28 27.6 2.6 25.6 By request Clip , Tape MPA 35-33 32.6 2.6 28.4 By request Clip , Tape

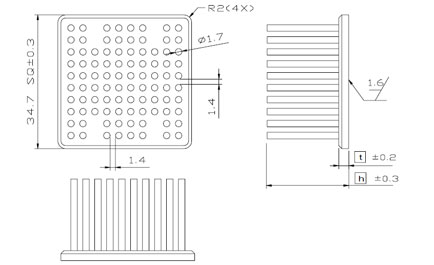

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number MPA35-12 indicate 35x35mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

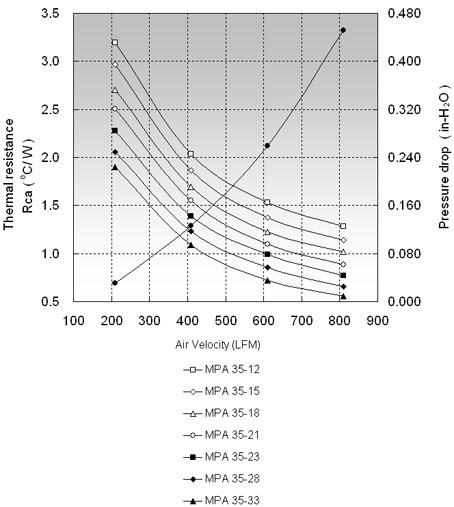

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MPA 35-12 3.19 1.95 1.50 MPA 35-15 2.97 1.78 1.36 MPA 35-18 2.77 1.63 1.22 MPA 35-21 2.59 1.50 1.10 MPA 35-23 2.40 1.37 0.99 MPA 35-28 2.14 1.19 0.85 MPA 35-33 1.90 0.99 0.71
