:: MPA29 :: Dimension

Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment MPA 29-12 11.6 2.6 10.6 By request Clip , Tape MPA 29-15 14.6 2.6 11.5 By request Clip , Tape MPA 29-18 17.6 2.6 12.5 By request Clip , Tape MPA 29-21 20.6 2.6 13.4 By request Clip , Tape MPA 29-23 22.6 2.6 14.0 By request Clip , Tape MPA 29-28 27.6 2.6 15.6 By request Clip , Tape MPA 29-33 32.6 2.6 17.1 By request Clip , Tape

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number MPA29-12 indicate 29x29mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

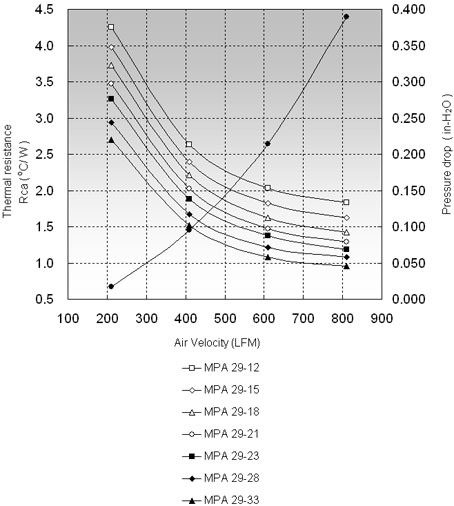

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MPA 29-12 4.25 2.63 2.03 MPA 29-15 3.98 2.40 1.82 MPA 29-18 3.73 2.21 1.62 MPA 29-21 3.47 2.02 1.48 MPA 29-23 3.26 1.88 1.38 MPA 29-28 2.94 1.67 1.22 MPA 29-33 2.70 1.47 1.10
