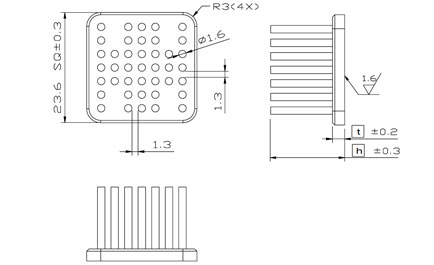

:: MPA24 :: Dimension

Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment MPA 24-12 11.6 2.6 7.6 By request Clip , Tape MPA 24-15 14.6 2.6 8.3 By request Clip , Tape MPA 24-18 17.6 2.6 9.0 By request Clip , Tape MPA 24-21 20.6 2.6 9.6 By request Clip , Tape MPA 24-23 22.6 2.6 10.1 By request Clip , Tape MPA 24-28 27.6 2.6 11.2 By request Clip , Tape MPA 24-33 32.6 2.6 12.4 By request Clip , Tape

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number MPA24-12 indicate 16x16mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

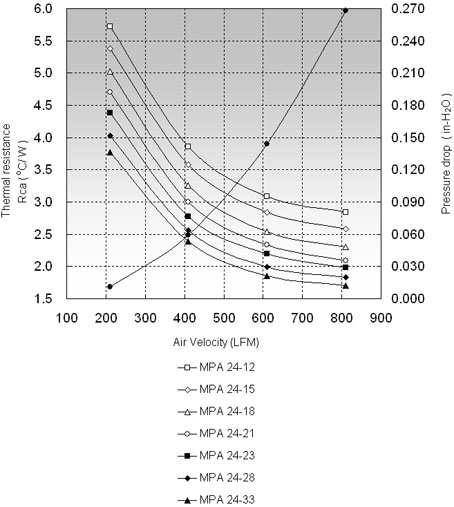

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MPA 24-12 5.73 3.86 3.09 MPA 24-15 5.38 3.58 2.84 MPA 24-18 5.02 3.26 2.54 MPA 24-21 4.70 3.00 2.33 MPA 24-23 4.38 2.77 2.19 MPA 24-28 4.03 2.56 1.99 MPA 24-33 3.77 2.39 1.85
