:: MPA17 :: Dimension

Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment MPA 17-11 10.7 1.7 3.7 By request Clip , Tape MPA 17-14 13.7 1.7 4.2 By request Clip , Tape MPA 17-17 16.7 1.7 4.8 By request Clip , Tape MPA 17-20 19.7 1.7 5.3 By request Clip , Tape MPA 17-22 21.7 1.7 5.6 By request Clip , Tape MPA 17-27 26.7 1.7 6.5 By request Clip , Tape MPA 17-32 31.7 1.7 7.4 By request Clip , Tape

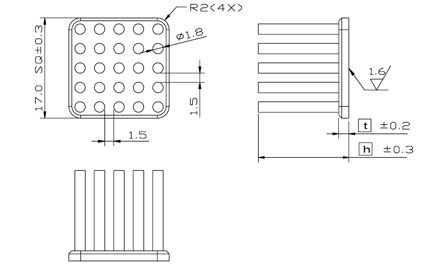

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number MPA17-11 indicate 17x17mm is package footprint and 11 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

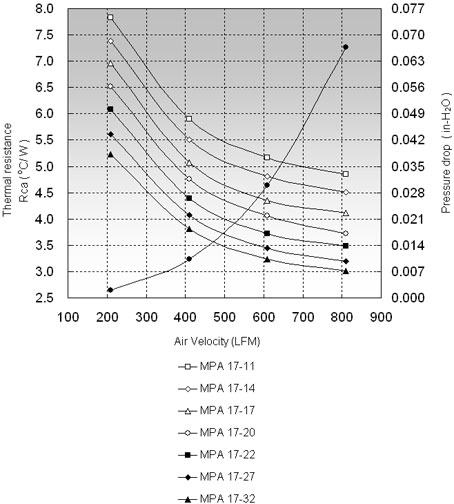

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MPA 17-11 7.82 5.90 5.17 MPA 17-14 7.38 5.51 4.82 MPA 17-17 6.96 5.07 4.36 MPA 17-20 6.51 4.75 4.06 MPA 17-22 6.08 4.39 3.72 MPA 17-27 5.61 4.07 3.44 MPA 17-32 5.23 3.81 3.24
