:: MPA16 :: Dimension

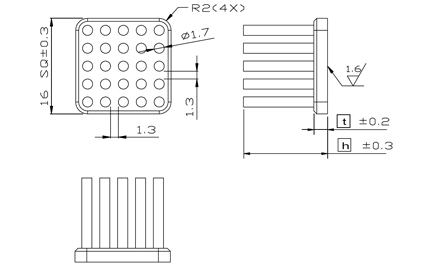

Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment MPA 16-11 11.3 2.3 3.8 By request Clip , Tape MPA 16-14 14.3 2.3 4.3 By request Clip , Tape MPA 16-17 17.3 2.3 4.8 By request Clip , Tape MPA 16-20 20.3 2.3 5.2 By request Clip , Tape MPA 16-22 22.3 2.3 5.5 By request Clip , Tape MPA 16-27 27.3 2.3 6.3 By request Clip , Tape MPA 16-32 32.3 2.3 7.1 By request Clip , Tape

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number MPA16-11 indicate 16x16mm is package footprint and 11 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

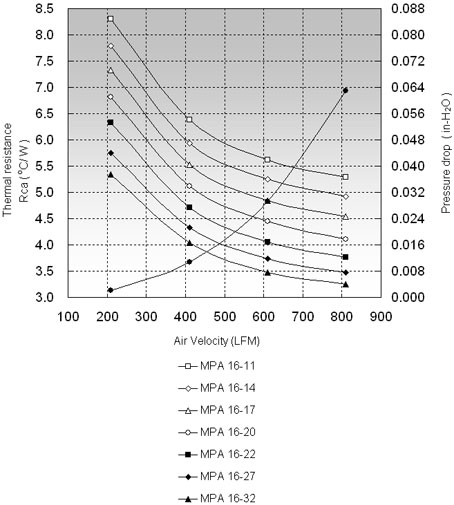

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MPA 16-11 8.30 6.38 5.62 MPA 16-14 7.79 5.93 5.24 MPA 16-17 7.33 5.45 4.75 MPA 16-20 6.82 5.12 4.45 MPA 16-22 6.33 4.71 4.05 MPA 16-27 5.75 4.33 3.70 MPA 16-32 5.34 4.04 3.47
