:: MLA15 :: Dimension
Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment
MLA 15-11 10.7 1.7 2.2 By request Clip , Tape
MLA 15-14 13.7 1.7 2.6 By request Clip , Tape
MLA 15-17 16.7 1.7 3.0 By request Clip , Tape
MLA 15-20 19.7 1.7 3.3 By request Clip , Tape
MLA 15-22 21.7 1.7 3.6 By request Clip , Tape
Home » Heat Sink with Talon Clip » MLA Series » MLA15 – Malico Inc.

Material
: Aluminum 6063
Finish
: Black anodize
Remarks
:

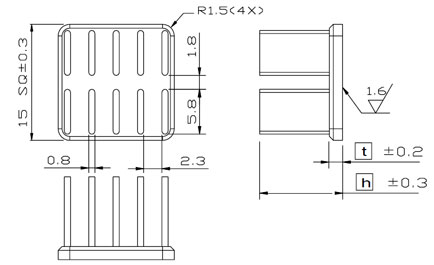

Model number MLA15-11 indicate 15x15mm is package footprint and 11 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

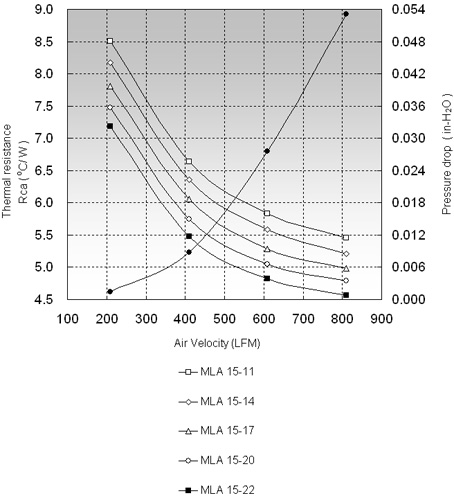

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
MLA 15-11 8.51 6.64 5.84
MLA 15-14 8.17 6.36 5.58
MLA 15-17 7.81 6.06 5.28
MLA 15-20 7.48 5.75 5.05
MLA 15-22 7.18 5.48 4.82
