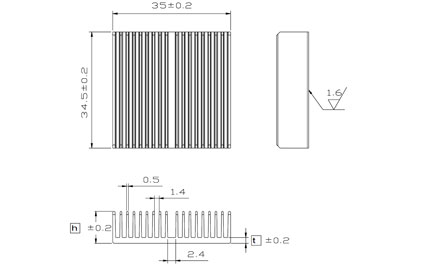

:: HCA 35 :: Dimension

Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment HCA 35-06 6.3 1.7 33.4 By request Clip , Tape HCA 35-10 9.5 1.7 43.2 By request Clip , Tape

Material : Copper 1100 Finish : Anti-Oxidation Remarks : Model number HCA 35-06 indicate 35x35mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

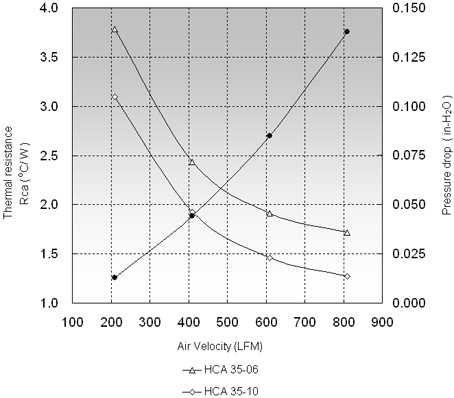

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) HCA 35-06 3.78 2.43 1.92 HCA 35-10 3.10 1.93 1.46
