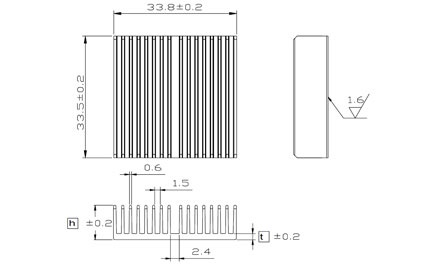

:: HCA 34 :: Dimension
Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment
HCA 34-06 6.3 1.7 32.8 By request Clip , Tape
HCA 34-10 9.5 1.7 41.9 By request Clip , Tape
Home » Heat Sink with Talon Clip » HCA Series » HCA34 – Malico Inc.

Material
: Copper 1100
Finish
: Anti-Oxidation
Remarks
: Model number HCA 34-06 indicate 34x34mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

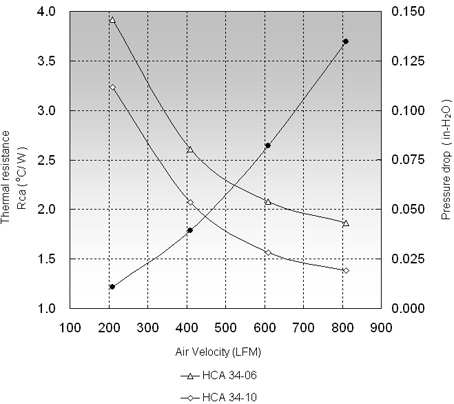

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
HCA 34-06 3.92 2.61 2.08
HCA 34-10 3.24 2.07 1.56
