HCA25 – Malico Inc.

Home » Heat Sink with Talon Clip » HCA Series » HCA25 – Malico Inc.

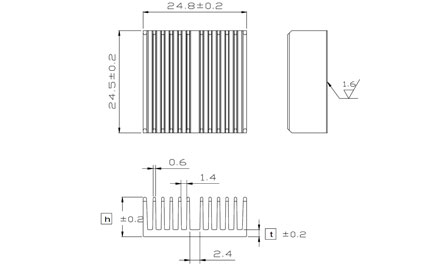

:: HCA 25 :: Dimension
Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment
HCA 25-06 6.3 1.7 18.6 By request Clip , Tape
HCA 25-10 9.5 1.7 23.7 By request Clip , Tape


Material
: Copper 1100
Finish
: Anti-Oxidation
Remarks
:
Model number HCA 25-06 indicate 25x25mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

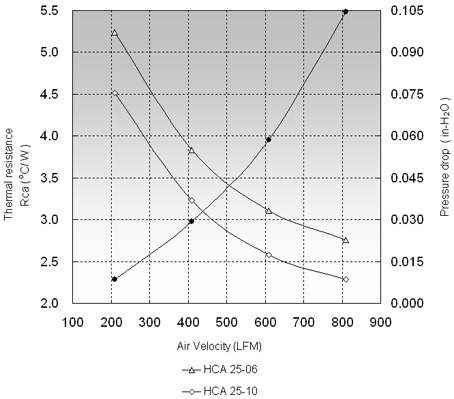

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
HCA 25-06 5.24 3.83 3.11
HCA 25-10 4.52 3.23 2.58
