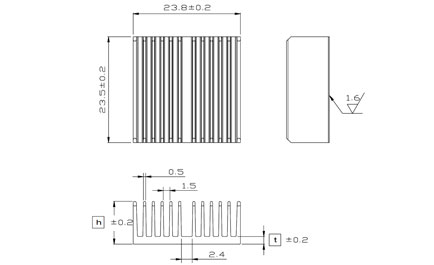

:: HCA 24 :: Dimension

Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment HCA 24-06 6.3 1.7 16.3 By request Clip , Tape HCA 24-10 9.5 1.7 20.5 By request Clip , Tape

Material : Copper 1100 Finish : Anti-Oxidation Remarks : Model number HCA 24-06 indicate 24x24mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

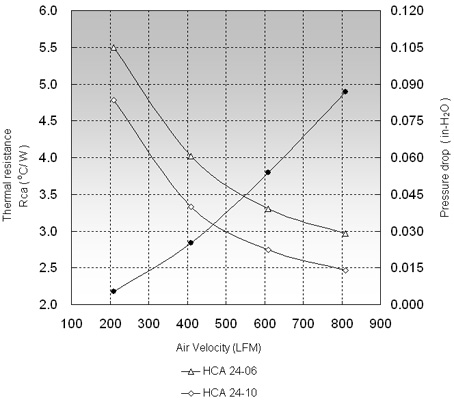

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) HCA 24-06 5.50 4.02 3.30 HCA 24-10 4.78 3.33 2.74
