:: HCA 23 :: Dimension
Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment
HCA 23-06 6.3 1.7 15.1 By request Clip , Tape
HCA 23-10 9.5 1.7 19.2 By request Clip , Tape


Material
: Copper 1100
Finish
: Anti-Oxidation
Remarks
:

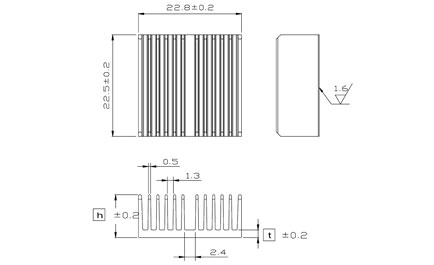

Model number HCA 23-06 indicate 23x23mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

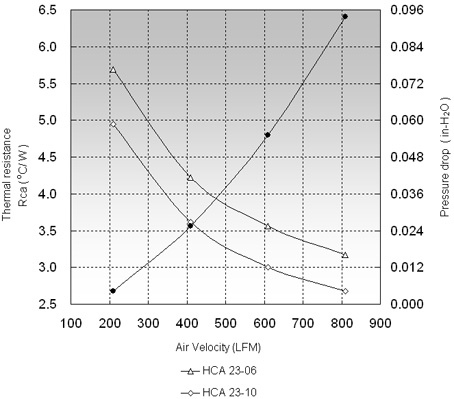

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
HCA 23-06 5.69 4.22 3.56
HCA 23-10 4.94 3.62 3.00
