:: HCA 19 :: Dimension

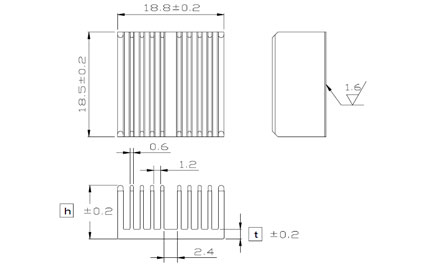

Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment
HCA 19-06 6.3 1.7 11.9 By request  Clip , Tape
HCA 19-10 9.5 1.7 15.4 By request  Clip , Tape


Material
: Copper 1100
Finish
: Anti-Oxidation
Remarks
:
Model number HCA 19-06 indicate 19x19mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

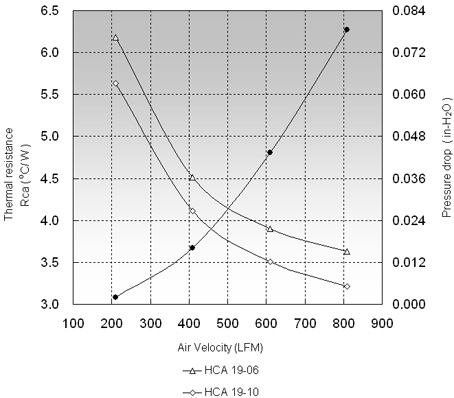

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
HCA 19-06 6.18 4.52 3.90
HCA 19-10 5.64 4.11 3.51
