:: HA 45 :: Dimension
Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment
HA 45-06 6.3 1.7 21.4 By request Clip , Tape
HA 45-10 9.5 1.7 27.9 By request Clip , Tape
HA 45-13 12.7 1.7 34.4 By request Clip , Tape
Material : Aluminum 6063

Finish : Black anodize

Remarks:



Material
: Aluminum 6063
Finish
: Black anodize
Remarks
:

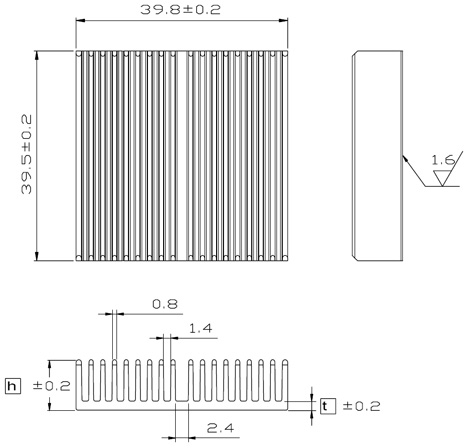

Model number HA45-06 indicate 45x45mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

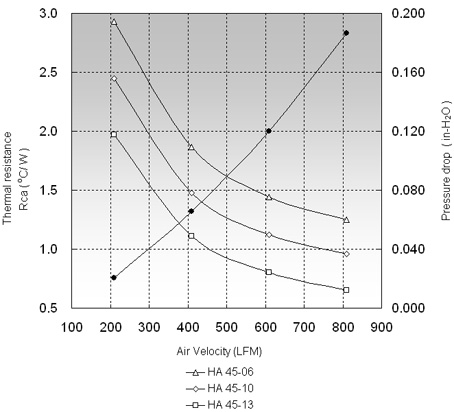

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
HA 45-06 2.93 1.87 1.44
HA 45-10 2.45 1.47 1.12
HA 45-13 1.97 1.11 0.80
