:: HA 42.5 :: Dimension

Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment HA 42.5-06 6.3 1.7 18.6 By request Clip , Tape HA 42.5-10 9.5 1.7 24.0 By request Clip , Tape HA 42.5-13 12.7 1.7 29.4 By request Clip , Tape

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number HA42.5-06 indicate 42.5×42.5mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

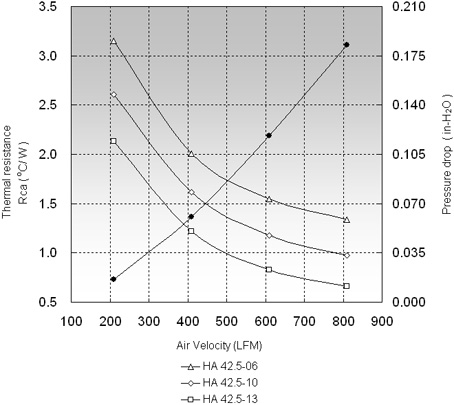

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) HA42.5-06 3.15 2.01 1.54 HA42.5-10 2.61 1.61 1.18 HA42.5-13 2.14 1.22 0.83
