:: HA 40 :: Dimension

Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment HA 40-06 6.3 1.7 17.0 By request Clip , Tape HA 40-10 9.5 1.7 23.0 By request Clip , Tape HA 40-13 12.7 1.7 27.2 By request Clip , Tape

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number HA40-06 indicate 40x40mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

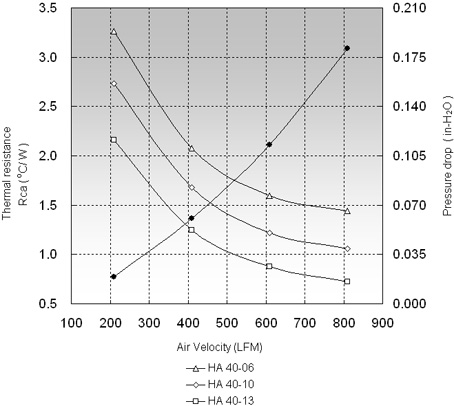

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) HA40-06 3.26 2.08 1.59 HA40-10 2.73 1.68 1.22 HA40-13 2.16 1.25 0.88
