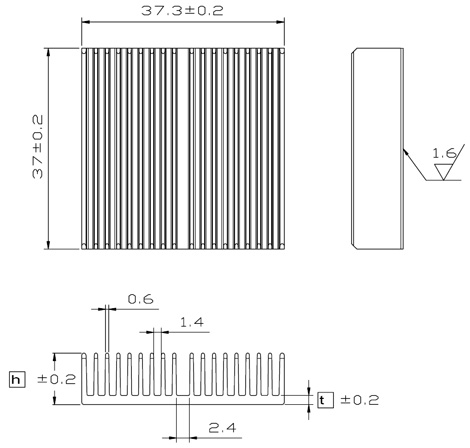

:: HA 37.5 :: Dimension

Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment HA 37.5-06 6.3 1.7 13.9 By request Clip , Tape HA 37.5-10 9.5 1.7 17.6 By request Clip , Tape HA 37.5-13 12.7 1.7 21.2 By request Clip , Tape

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number HA37.5-06 indicate 37.5×37.5mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

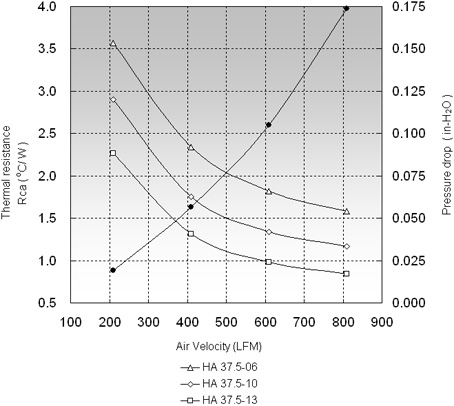

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) HA37.5-06 3.57 2.34 1.82 HA37.5-10 2.90 1.75 1.34 HA37.5-13 2.27 1.31 0.98
