HA35 – Malico Inc.

Home » Heat Sink with Talon Clip » HA Series » HA35 – Malico Inc.

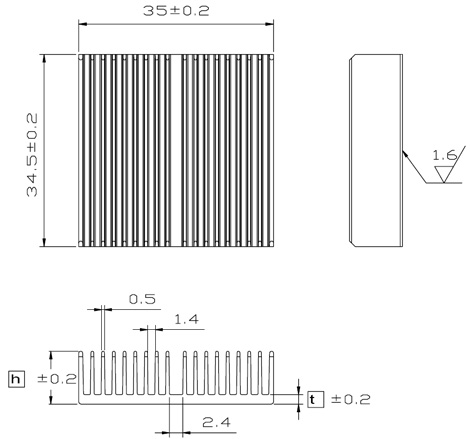

:: HA 35 :: Dimension
Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment
HA 35-06 6.3 1.7 12.0 By request Clip , Tape
HA 35-10 9.5 1.7 15.0 By request Clip , Tape
HA 35-13 12.7 1.7 17.8 By request Clip , Tape


Material
 : Aluminum 6063
Finish
 : Black anodize
Remarks
 :
Model number HA35-06 indicate 35x35mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

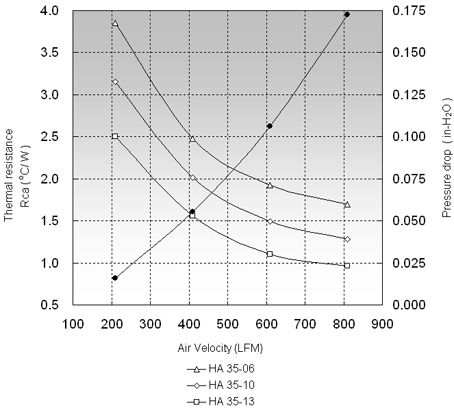

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
HA35-06 3.85 2.48 1.92
HA35-10 3.15 2.01 1.49
HA35-13 2.50 1.56 1.10
