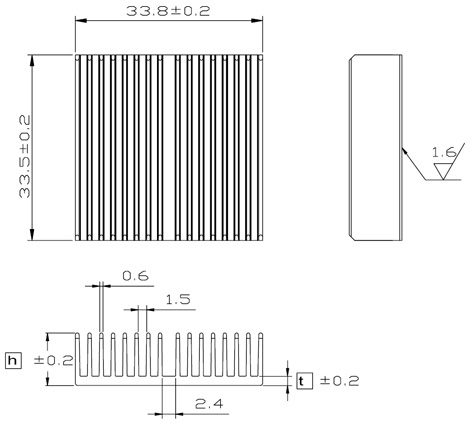

:: HA 34 :: Dimension

Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment HA 34-06 6.3 1.7 11.2 By request Clip , Tape HA 34-10 9.5 1.7 14.1 By request Clip , Tape HA 34-13 12.7 1.7 17.0 By request Clip , Tape

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number HA34-06 indicate 34x34mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

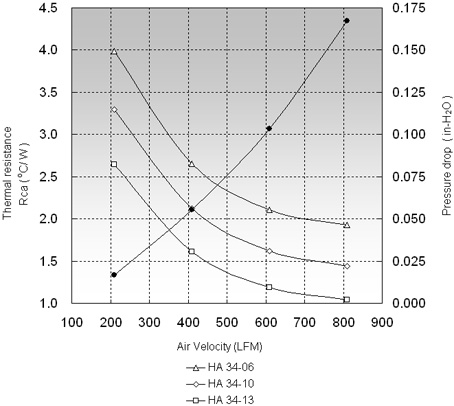

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) HA34-06 3.98 2.66 2.10 HA34-10 3.29 2.12 1.62 HA34-13 2.64 1.61 1.19
