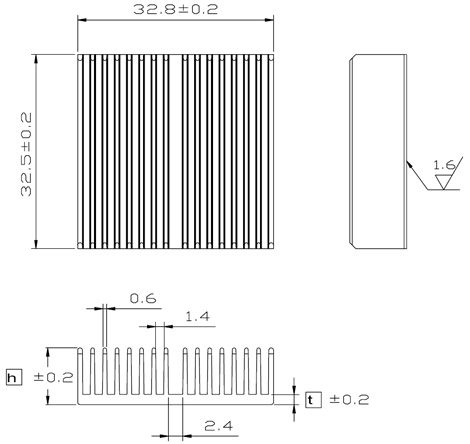

:: HA 33 :: Dimension

Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment HA 33-06 6.3 1.7 11.1 By request Clip , Tape HA 33-10 9.5 1.7 13.9 By request Clip , Tape HA 33-13 12.7 1.7 16.8 By request Clip , Tape

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number HA33-06 indicate 33x33mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

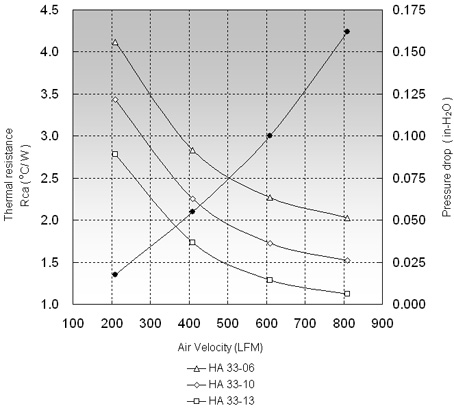

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) HA 33-06 4.12 2.83 2.27 HA 33-10 3.43 2.25 1.72 HA 33-13 2.79 1.73 1.28
