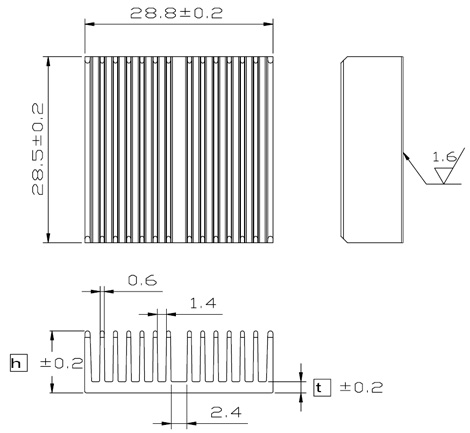

:: HA 29 :: Dimension

Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment HA 29-06 6.3 1.7 9.0 By request Clip , Tape HA 29-10 9.5 1.7 11.2 By request Clip , Tape HA 29-13 12.7 1.7 13.4 By request Clip , Tape

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number HA29-06 indicate 29x29mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

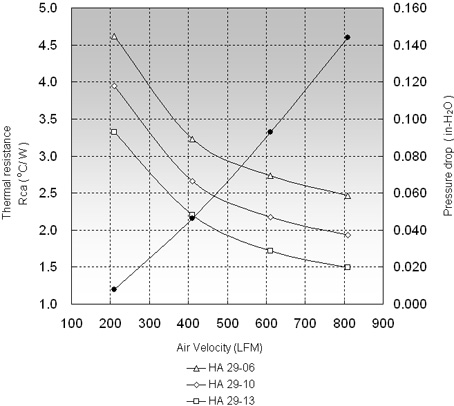

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) HA29-06 4.62 3.23 2.73 HA29-10 3.95 2.66 2.18 HA29-13 3.32 2.20 1.72
