:: HA 24 :: Dimension

Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment HA 24-06 6.3 1.7 6.3 By request Clip , Tape HA 24-10 9.5 1.7 7.6 By request Clip , Tape HA 24-13 12.7 1.7 8.9 By request Clip , Tape

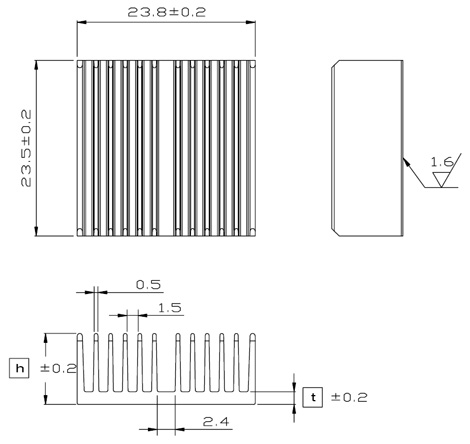

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number HA24-06 indicate 24x24mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

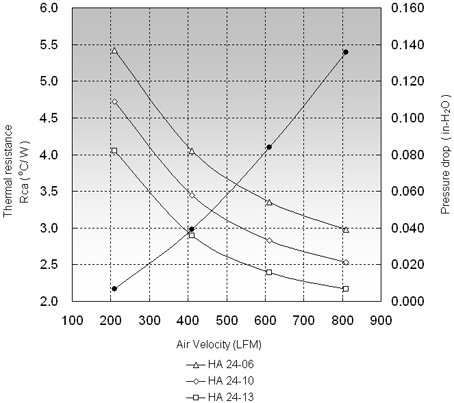

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) HA24-06 5.43 4.05 3.36 HA24-10 4.72 3.45 2.83 HA24-13 4.05 2.89 2.39
