:: HA 23 :: Dimension

Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment HA 23-06 6.3 1.7 5.6 By request Clip , Tape HA 23-10 9.5 1.7 6.9 By request Clip , Tape HA 23-13 12.7 1.7 8.1 By request Clip , Tape

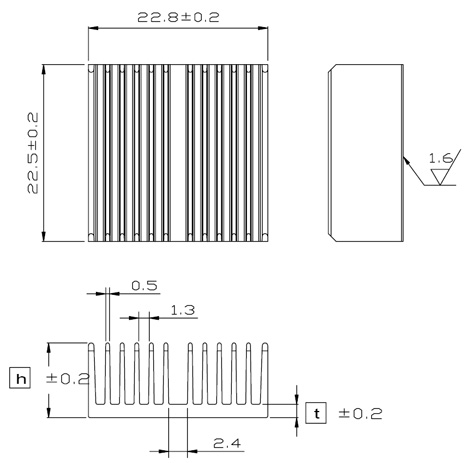

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number HA23-06 indicate 23x23mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

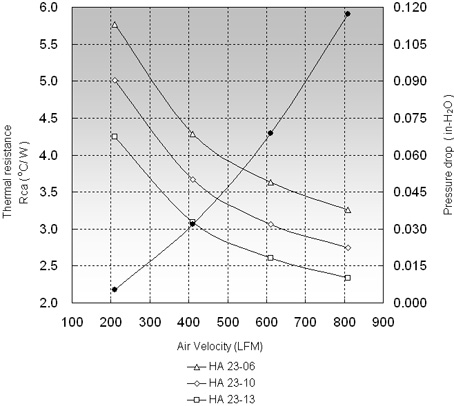

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) HA23-06 5.77 4.28 3.63 HA23-10 5.01 3.67 3.06 HA23-13 4.25 3.09 2.61
