:: HA 22:: Dimension

Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment HA 22-06 6.3 1.7 5.6 By request Clip , Tape HA 22-10 9.5 1.7 6.7 By request Clip , Tape HA 22-13 12.7 1.7 7.9 By request Clip , Tape

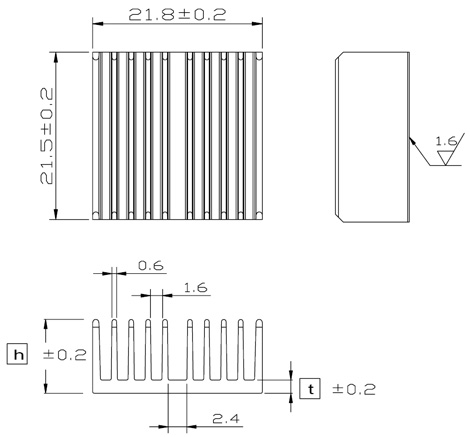

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number HA22-06 indicate 22x22mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

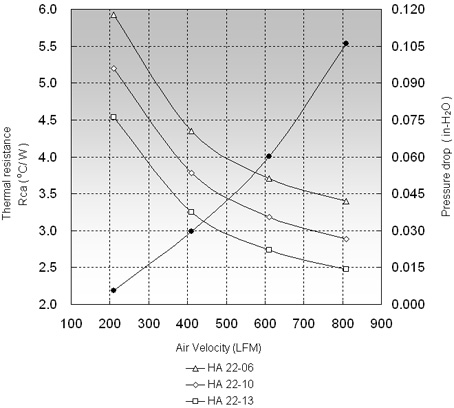

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) HA 22-06 5.93 4.35 3.71 HA 22-10 5.20 3.78 3.18 HA 22-13 4.54 3.25 2.73
