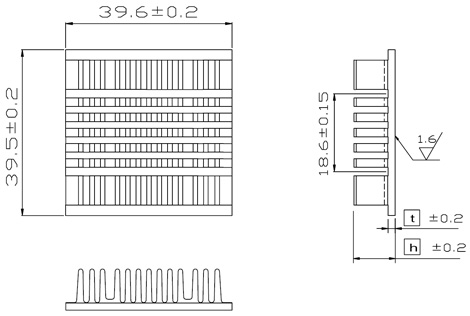

:: EXA40 :: Dimension

Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment EXA 40-10 9.8 1.7 23.0 By request Clip , Tape

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number EXA40-10 indicate 40x40mm is package footprint and 10 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

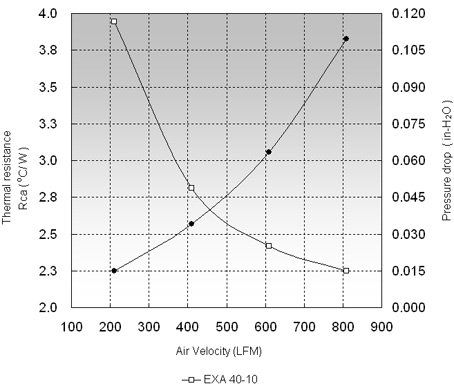

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) EXA 40-10 3.95 2.81 2.42
