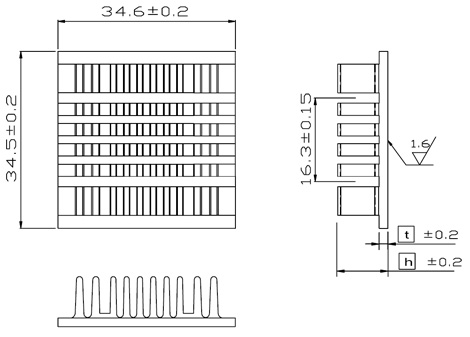

:: EXA35 :: Dimension

Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment EXA 35-10 9.8 1.7 16.4 By request Clip , Tape

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number EXA35-10 indicate 35x35mm is package footprint and 10 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

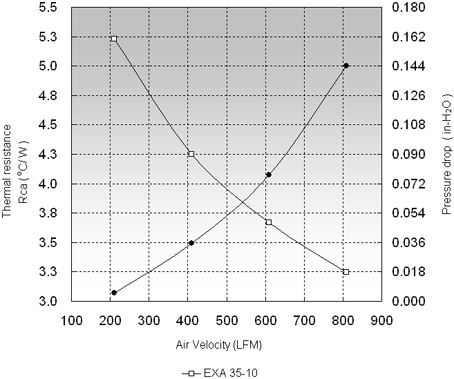

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) EXA 35-10 5.23 4.25 3.67
