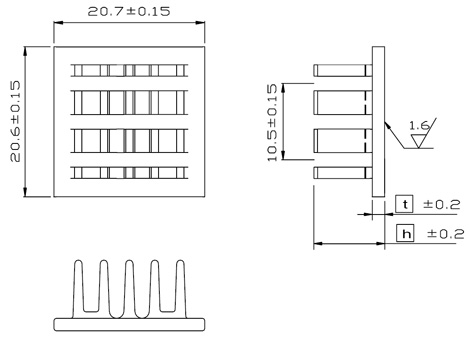

:: EXA21 :: Dimension
Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment
EXA 21-10 9.7 1.7 5.8 By request Clip , Tape
Home » Heat Sink with Talon Clip » EXA Series » EXA21 – Malico Inc.

Material
: Aluminum 6063
Finish
: Black anodize
Remarks
:
Model number EXA21-10 indicate 21x21mm is package footprint and 10 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
EXA 21-10 12.23 9.70 8.35
