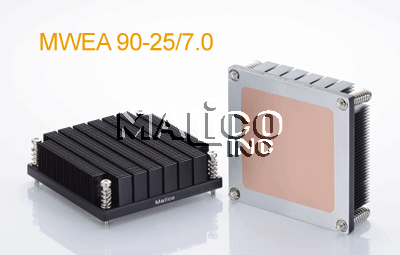

MWEA 90-25/7.0 – Malico Inc.

Home » CPU » MWEA 90-25/7.0 – Malico Inc.



1.Material : Aluminum 6063 ,Copper embedded
2.Finish : Black anodize (optional)

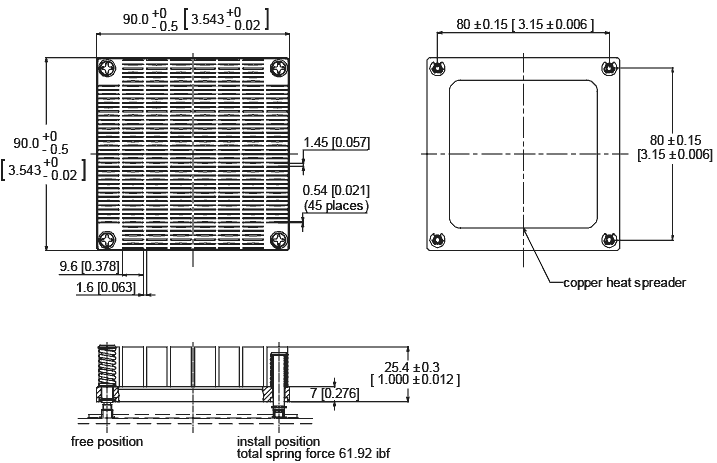

3.All dimensions are in millimeter (mm) [inch].





:: Attachment ::
Shoulder-Screw : steel , nickel plating

Spring : SWP-B , nickel plating
E-Retaining Ring : stainless steel

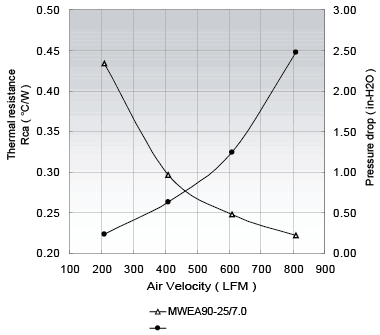

::Rth (oC/W)::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM) 800(LFM)
MWEA
90-25/7.0
0.434 0.297 0.248 0.222
