• MWEA 70104-25



1.Material	:	Aluminum 6063 ,Copper embedded
2.Finish	:	Black anodize (optional)

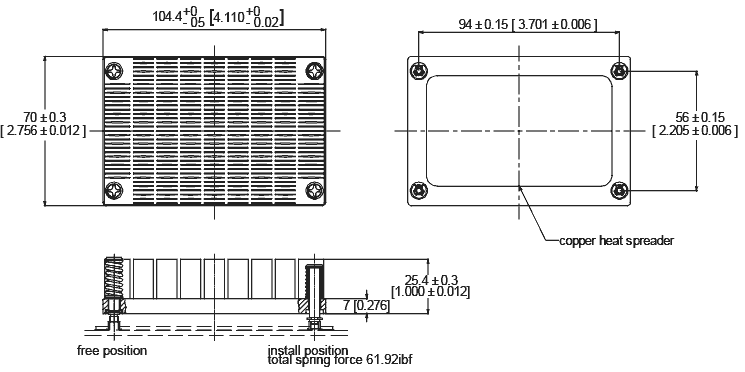

3.All dimensions are in millimeter (mm) [inch].





:: Attachment ::

Shoulder-Screw	:	steel , nickel plating
Spring	:	SWP-B , nickel plating
E-Retaining Ring	:	stainless steel

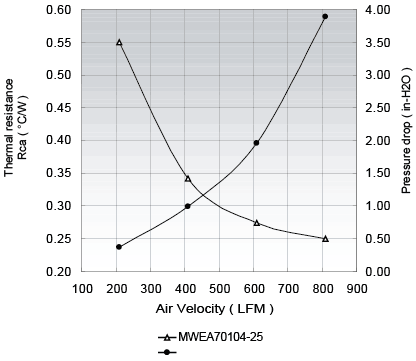

::Rth (oC/W)::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) 800(LFM) MWEA 70-104/25 0.550 0.342 0.274 0.250
