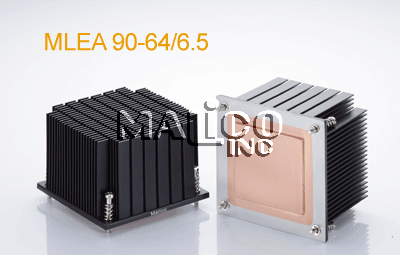

• MLEA 90-64/6.5
• MWEA 90-25/6.5



1.Material	:	Aluminum 6063 ,Copper embedded
2.Finish	:	Black anodize (optional)

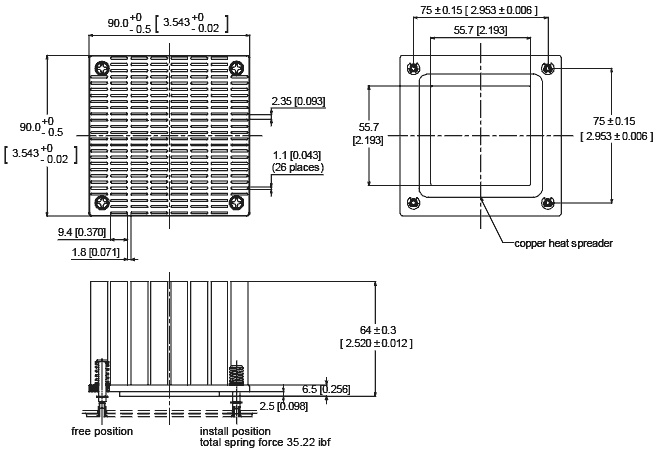

3.All dimensions are in millimeter (mm) [inch].





:: Attachment ::

Shoulder-Screw	:	steel , nickel plating
Spring	:	SWP-B , nickel plating
E-Retaining Ring	:	stainless steel

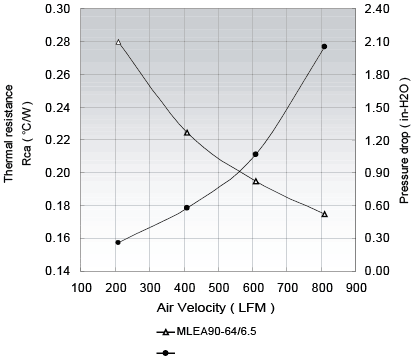

::Rth (oC/W)::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) 800(LFM) MLEA 90-64/6.5 0.275 0.220 0.190 0.170
