MPC-5861 – Malico Inc.

Home » DC/DC Converter » MPC-5861 – Malico Inc.

• MP5861
• MPC5861
• HC5861
• HC6158

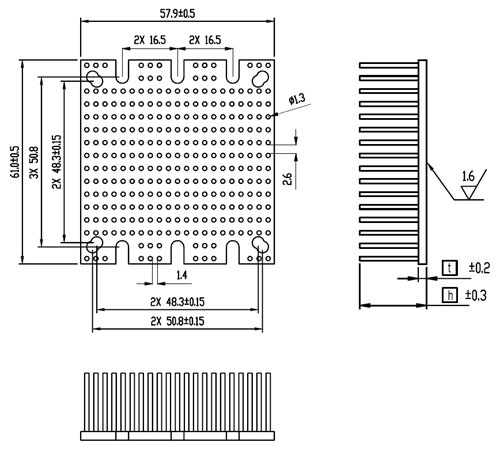

Model No.	Height (mm)	Thickness (mm)	Weight (grams)	CAD
MPC 5861-10	10	2.5	100.00	By request
MPC 5861-20	20	2.5	134.00	By request
MPC 5861-25	25	2.5	151.00	By request





::Rth (oC/W)::
	Air Velocity / R th ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MPC 5861-10 1.15 0.78 0.59 MPC 5861-20 0.99 0.64 0.48 MPC 5861-25 0.83 0.54 0.42
