| Model No. | Height (mm) | Thickness (mm) | Weight (grams) | CAD |
| MPC 11761-10 | 10 | 2.5 | 216.00 | By request |
| MPC 11761-20 | 20 | 2.5 | 296.00 | By request |
| MPC 11761-25 | 25 | 2.5 | 335.00 | By request |
| ::Rth (oC/W):: | |||||
 |
|

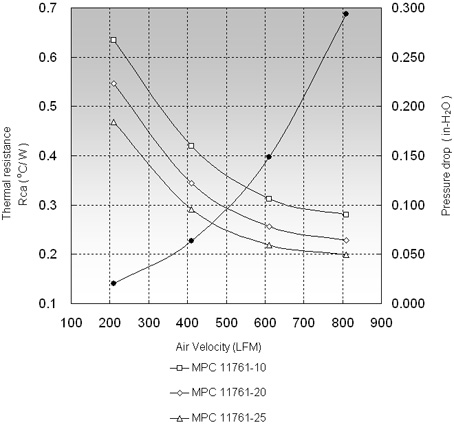

Air Velocity / R th ( oC/W ) | |||
|---|---|---|---|---|---|
| 200(LFM) | 400(LFM) | 600(LFM) | |||
| MPC 11761-10 | 0.63 | 0.42 | 0.31 | ||
| MPC 11761-20 | 0.55 | 0.34 | 0.26 | ||
| MPC 11761-25 | 0.47 | 0.29 | 0.22 | ||
