:: ML13 :: Dimension
Model No. L x W (mm) Height (mm) Weight (grams) CAD
ML 13-11 13 x 13 10.7 1.5 By request
ML 13-14 13 x 13 13.7 1.7 By request
ML 13-17 13 x 13 16.7 2.0 By request
ML 13-20 13 x 13 19.7 2.2 By request
ML 13-22 13 x 13 21.7 2.4 By request


Home » Passive Heat Sink » ML Series » ML13 – Malico Inc.

Material
: Aluminum 6063
Finish
: Black anodize
Remarks
:
Model number ML13-11 indicate 13x13mm is package footprint and 11 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

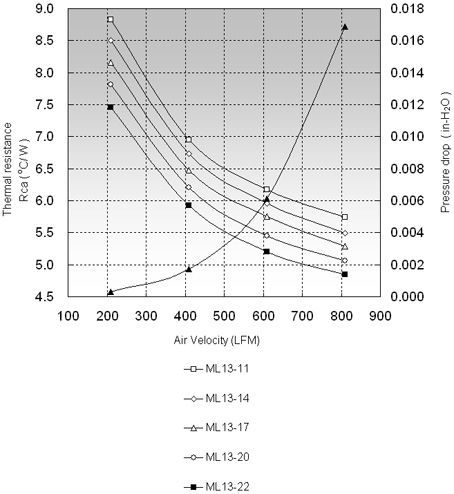

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
ML 13-11 8.83 6.95 6.17
ML 13-14 8.50 6.73 5.96
ML 13-17 8.16 6.47 5.75
ML 13-20 7.81 6.20 5.45
ML 13-22 7.46 5.92 5.20
