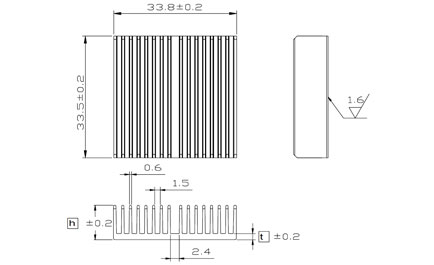

:: HC 34 :: Dimension
Model No. L x W (mm) Height (mm) Weight (grams) CAD
HC 34-06 34 x 34 6.3 30.8 By request
HC 34-10 34 x 34 9.5 39.9 By request


Home » Passive Heat Sink » HC Series » HC34 – Malico Inc.

Material
: Copper 1100
Finish
: Anti-Oxidation
Remarks
:
Model number HC 34-06 indicate 34x34mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

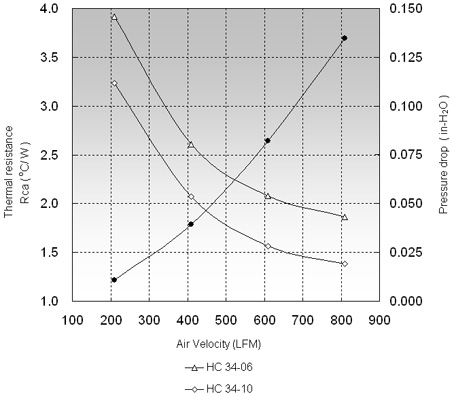

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
HC 34-06 3.92 2.61 2.08
HC 34-10 3.24 2.07 1.56
