MPF31 – Malico Inc.

Home » Heat Sink with Fan » MPF Series » MPF31 – Malico Inc.

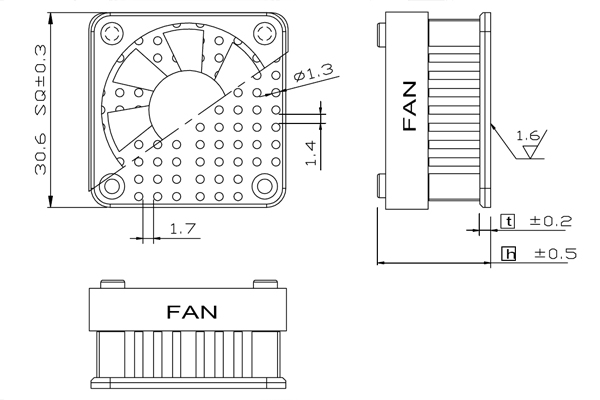

:: MPF31 :: Dimension

Model No.	Height (mm)	Thickness (mm)	Weight (grams)	Rth ( ^oC/W )	CAD	Attachment
MPF31-18	17.8	1.7	18.0	2.98	By request	Clip , Tape

Dimensions: mm Material : AL6063 Finish :black anodize

:: Fan ::

Dimension	Bearing	Voltage (VDC)	Speed (RPM)	Air Flow (CFM)	Noise (dBA)
30 x 30 x 6.9mm	VAPO	5V	9500	4.9	28

Remarks:
1) Standard wire length 300mm.
2) Connector Molex 2695-3P or equivalent
