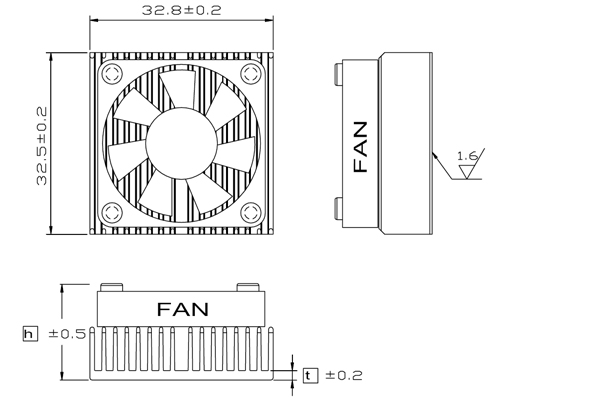

:: HF33 :: Dimension

Model No.	Height (mm)	Thickness (mm)	Weight (grams)	Rth ( ^oC/W )	CAD	Attachment
HF33-15	15	1.7	9.1	2.18	By request	Clip , Tape
HF33-18	18	1.7	11.9	1.98	By request	Clip , Tape
HF33-21	21	1.7	14.8	1.75	By request	Clip , Tape

Dimensions: mm Material : AL6063 Finish :black anodize

:: Fan ::

Dimension	Bearing	Voltage (VDC)	Speed (RPM)	Air Flow (CFM)	Noise (dBA)
30 x 30 x 6.9mm	VAPO	5V	9500	4.9	28

Remarks:
1) Standard wire length 300mm.
2) Connector Molex 2695-3P or equivalent
