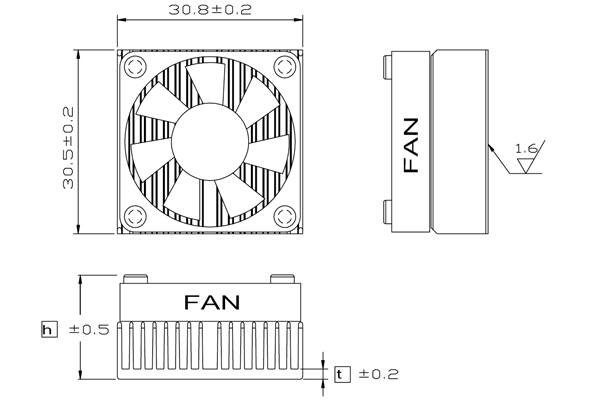

:: HF31 :: Dimension
Model No. Height (mm) Thickness (mm) Weight (grams) Rth ( oC/W ) CAD Attachment
HF31-15 15 1.7 15.7 2.32 By request Clip , Tape
HF31-18 18 1.7 17.9 2.02 By request Clip , Tape
HF31-21 21 1.7 20.1 1.93 By request Clip , Tape

Dimensions: mm Material : AL6063 Finish :black anodize

:: Fan ::
Dimension Bearing Voltage (VDC) Speed (RPM) Air Flow (CFM) Noise (dBA)
30 x 30 x 6.9mm VAPO 5V 9500 4.9 28
Remarks:
1) Standard wire length 300mm.
2) Connector Molex 2695-3P or equivalent
