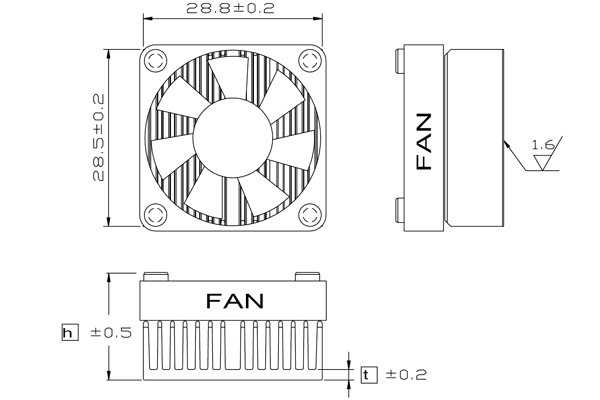

:: HF29 :: Dimension
Model No. Height (mm) Thickness (mm) Weight (grams) Rth ( oC/W ) CAD Attachment
HF29-15 15 1.7 15.0 2.44 By request Clip , Tape
HF29-18 18 1.7 17.2 2.10 By request Clip , Tape
HF29-21 21 1.7 19.4 2.05 By request Clip , Tape

Dimensions: mm Material : AL6063 Finish :black anodize

:: Fan ::
Dimension Bearing Voltage (VDC) Speed (RPM) Air Flow (CFM) Noise (dBA)
30 x 30 x 6.9mm VAPO 5V 9500 4.9 28
Remarks:
1) Standard wire length 300mm.
2) Connector Molex 2695-3P or equivalent
