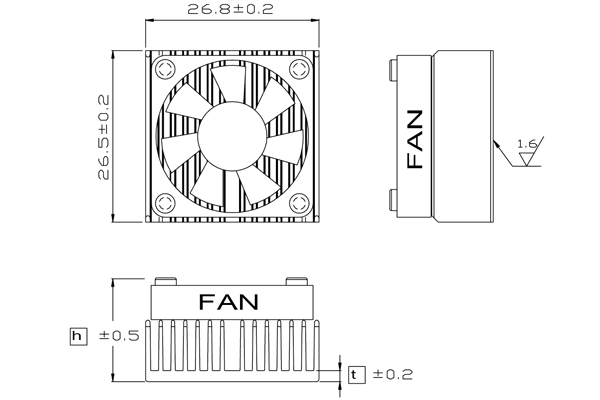

:: HF27 :: Dimension

Model No.	Height (mm)	Thickness (mm)	Weight (grams)	Rth ( ^oC/W )	CAD	Attachment
HF27-15	15	1.7	12.8	2.73	By request	Clip , Tape
HF27-18	18	1.7	14.5	2.54	By request	Clip , Tape
HF27-21	21	1.7	16.2	2.21	By request	Clip , Tape

Dimensions: mm Material : AL6063 Finish :black anodize

:: Fan ::

Dimension	Bearing	Voltage (VDC)	Speed (RPM)	Air Flow (CFM)	Noise (dBA)
25x25x6mm	VAPO	5V	13000	3	31

Remarks:
1) Standard wire length 300mm.
2) Connector Molex 2695-3P or equivalent
